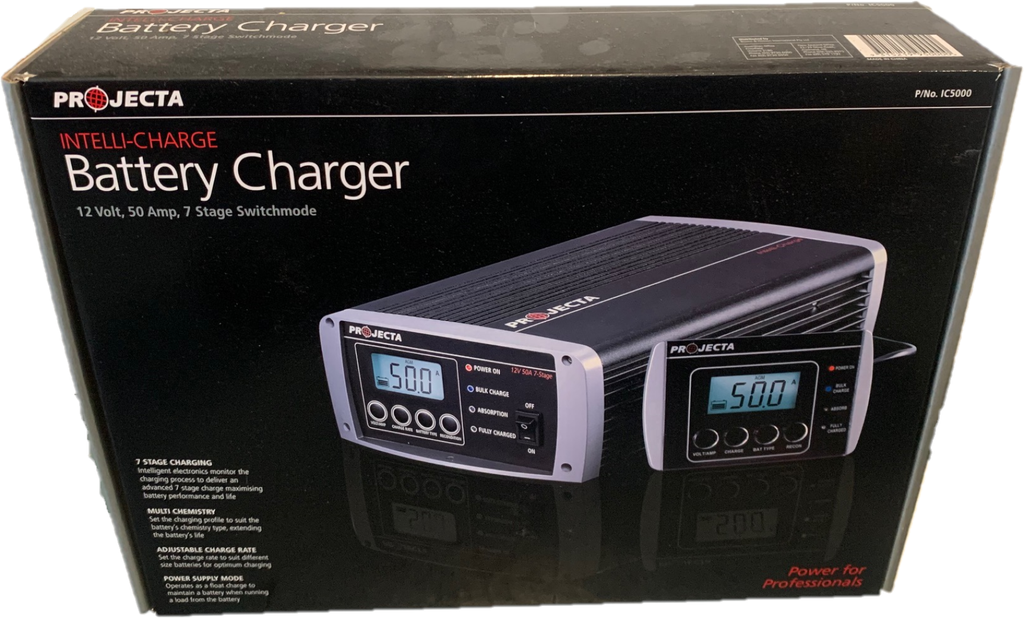

12V AUTOMATIC 50A 7 STAGE BATTERY CHARGER
PART NO IC50
An extremely versatile charger that is capable of being set to charge smaller batteries found in recreational equipment right up to the huge power demands of large battery banks often found on houseboats and yachts.
FEATURES
Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel
Adjustable Output
Adjustable for different battery sizes & include 1.8m temperature compensation probe for precise charging
Power Supply Mode
Retains vehicle computer settings when changing a battery or can run 12V appliances
Wired Remote Control
Allows charger to be mounted out of sight yet retain total control, includes 4.5m lead
Shock & Dust Proof
Durable construction and safer charging with spark free and polarity protected connection
| SPECIFICATIONS | |||
|---|---|---|---|
|
PART NO |
IC5000 |
||
|
TYPE |
7 Stage Automatic |
||
|
INPUT |
240VAC, 50Hz, 820W |
||
|
OUTPUT |
12V |
||
|
OUTPUT CURRENT |
2, 6, 12, 25, 50A |
||
|
MINIMUM START VOLTAGE |
1.0V |
||
|
BACK DRAIN |
Charger 1mA, with remote 2mA |
||
|
APPROVALS |
Electrical Safety, EMC |
||
|
CHARGE VOLTAGE |
14.1V (GEL), 14.4V (AGM), |
||
| L.E.D. CHARGE INDICATION | |||
|
SCREEN |
Back lit LCD screen |
||
|
RED LIGHT ON |
Power on |
||
|
BLUE LIGHT ON |
Charging |
||
|
GREEN LIGHT ON |
Fully charged and maintaining, |
||
| BATTERY CHARGE TIMES | |||
|
IC5000 |
VOLTAGE |
BATTERY SIZE |
CHARGE TIME |
|
AUTOMOTIVE |
12V |
80–6000CCA |
7–24 hrs |
|
MARINE |
12V |
110–8300MCA |
7–24 hrs |
|
DEEP CYCLE |
12V |
14–1000Ah |
7–24 hrs |
